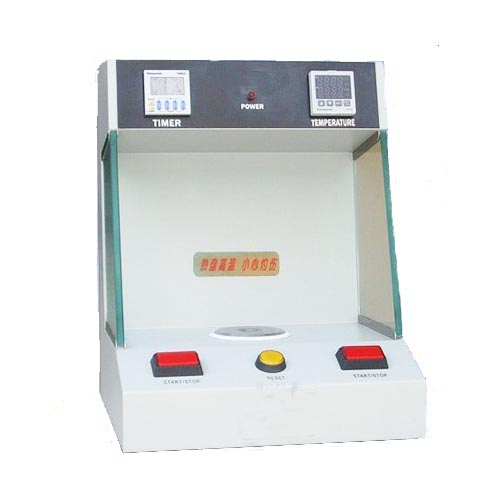

GT-II型凝胶时间测定仪按IPC-TM-650试验方法手册中的试验方法2.3.18设计制造,主要元器件均有国外进口,热盘采用超导热耐磨合金材料,专业用于测试半固化片及树脂粉末等的凝胶化时间。配有清理时必需的离型剂和各种测试工具。
The GT-II Gel Time is designed to meet the requirements of IPC-TM-650 Method 2.3.18 for determine the gel time of prepreg and mixed resin.The tester is equipped with all necessary tools.
热盘控温精度--------------------------------------------±0.5℃
热盘温度最小读数------------------------------------------0.1℃
工作温度------------------------------------------------常规-230℃
时钟计时-------------------------------------------------0—999.9秒
热盘胶池尺寸--------------------------------------------Φ20.0㎜
供 电-------------------------------------------220V,50HZ,300W,单相
机体尺寸(㎜):(W×D×H)----------------------------310×310×410
机体重量(㎏)------------------------------------------11.5㎏
Model: |
GT-II |
Hot Platen Temperature Accuracy: |
±0.5℃ |
Hot Platen Temperature Graduation: |
0.1℃ |
Operation Temperature: |
230℃ max |
Timer: |
0-999.9s |
Hoe Platen Resin Pool Size: |
φ20.0mm |
Power: |
200 V,50Hz,300W |
Dimension: |
310×310×410mm(W×D×H) |
Weight: |
11.5kg |
GT-3自动凝胶化时间测定仪 是专门针对树脂、粉末涂料在给定温度下进行胶化时间测定
GT-6型自动胶固化时间测定仪(胶固化时间测定仪)不饱和树脂凝胶时间测定仪
